Pallet handling systems

Liebherr-Verzahntechnik GmbH offers an extensive range of automation systems that support modern high-efficiency production. They not only assist in reducing the production costs, but also permit short-term and flexible responses to changes in the demands of the market. In the field of pallet handling systems, Liebherr complements the established linear PHS with the new RLS rotation loading system.

Both pallet handling systems are primarily used for the automatic loading of machining centres. The PHS is available in four sizes to transport loads ranging from 100 to 6,500 kg. The RLS is available in two sizes and is designed to transport loads ranging from 500 to 1,500 kg. Each of the automation devices presented here are part of a modular system that can be individually adapted to the particular application. The number of connected machines as well as equipment and storage slots remains variable. With expansion options to handle unmachined and finished parts on pallets, the system meets every requirement for state-of-the-art production.

The RLS is characterized by its high storage density per installation area as well as by its flexibility and user-friendliness. The great advantage of the PHS is the unique optional front access to the machine. Front access makes unrestricted manual as well as automatic operation possible. Additional information is available in our downloadable brochure.

Transportload max. [kg]
100
Workpiece diameter max. [mm]
750
Transportload max. [kg]
500 / 750 / 1,000
Workpiece diameter max. [mm]
1,000
Transportload max. [kg]
1,500 / 2,000 / 2,500
Workpiece diameter max. [mm]
1,150 / 1,700
Transportload max. [kg]
3,500 / 6,500
Workpiece diameter max. [mm]
1,900 / 2,400
Transportload max. [kg]
800
Workpiece diameter max. [mm]
600 / 800
Transportload max. [kg]
1,500
Workpiece diameter max. [mm]
900 / 1,300

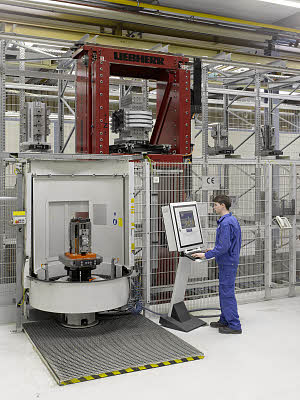

Liebherr PHS setup station
