Storage systems

Liebherr Automation Systems offer different versions of workpiece storage systems.

Lift and carrier
Size 1 [kg]
Stack weight max. 500
Size 2 [kg]
Stack weight max. 1,000
Pallet dimensions
Euro- or USA-Norm
Magazine with indexing chain conveyors
Number of storage spaces
variable
Part nest
Storage on cycle chain conveyor
Magazine with fixed supports
Number of storage spaces
Variable
Part nest
Fixed supports

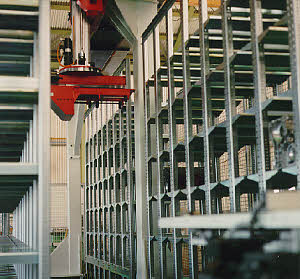

Shelf magazine
Number of storage spaces
variable
Part nest
fixed supports
Pallet storage tower EKM 500
Pallet weight max. (with workpieces) [kg]
500
Layer sizing
variable
