Wheeled excavators

The wheeled excavators featuring operating weights of between 20 t and 91 t distinguish themselves via their uniform excavator design, featuring the most state-of-the-art technology. These machines are applied in civil engineering, industrial material handling, tunnelling applications, water resources engineering and demolition and mining industries.

All working attachments including backhoe buckets, bottom-dump buckets, material handling or demolition attachments, are all designed and manufactured by Liebherr themselves.

A 904 C HD Litronic Material Handler
Operating weight
53,800 - 56,200 lb
Engine output
105 kW/141 HP
(SAE J1349)
Grapple capacity
0.52 - 2.35 yd³
A 924 C Litronic Material Handler
Operating weight
59,900 - 63,600 lb
Engine output
129 kW/173 HP
(SAE J1349)
Grapple capacity
0.52 - 2.35 yd³
A 924 C HD Litronic log loader
Operating weight
63,900 lb
Engine output
129 kW/173 HP
(SAE J1349)
Grapple capacity
18.30 ft²
A 934 C Litronic Material Handler
Operating weight
80,000 - 82,000 lb
Engine output
150 kW/201 HP
(SAE J1349)
Grapple capacity
0.52 - 2.62 yd³
A 934 C ERC Litronic Material Handler
Operating weight
83,650 - 84,350 lb
Engine output
129 kW/173 HP
(SAE J1349)
Grapple capacity
0.52 - 2.62 yd³
A 934 C HD Litronic Material Handler
Operating weight
90,700 - 93,500 lb
Engine output
150 kW/201 HP
(SAE J1349)
Grapple capacity
0.52 - 2.62 yd³
A 934 C HD ERC Litronic Material Handler
Operating weight
92,370 - 94,360 lb
Engine output
129 kW/173 HP
(SAE J1349)
Grapple capacity
0.52 - 2.62 yd³
A 934 C HD Litronic log loader
Operating weight
80,350 - 83,000 lb
Engine output
150 kW/201 HP
(SAE J1349)
Grapple capacity
26.91 ft²
A 934 C HD Litronic High Rise
Operating weight
100,300 - 102,300 lb
Engine output
150 kW/201 HP
(SAE J1349)
Grapple capacity
0.52 - 2.62 yd³
A 944 C HD Litronic Material Handler
Operating weight
125,700 - 128,900 lb
Engine output
190 kW/255 HP
(SAE J1349)
Grapple capacity
1.05 - 2.62 yd³
A 944 C HD Litronic High Rise Material Handler
Operating weight
151,400 - 158,200 lb
Engine output
190 kW/255 HP
(SAE J1349)
Grapple capacity
1.05 - 2.62 yd³
A 944 C HD Litronic log loader
Operating weight
97,300 lb
Engine output
190 kW/255 HP
(SAE J1349)
Grapple capacity
8.61 - 30.14 ft²
A 954 C HD Litronic Material Handler
Operating weight
166,000 - 170,600 lb
Engine output
240 kW/322 HP
(SAE J1349)
Grapple capacity
1.57 - 3.27 yd³
A 954 C HD Litronic High Rise Material Handler
Operating weight
183,500 - 200,400 lb
Engine output
240 kW/322 HP
(SAE J1349)
Grapple capacity
1.57 - 3.27 yd³
LH 30 M Litronic
Operating weight
62,050 - 63,500 lb
Engine output
129 kW/173 HP
(SAE J1349)
Multi-tine grapple capacity
0.52 - 0.78 yd³
Shells for loose material capacity
1.70 - 2.62 yd³
Sorting grapple capacity
0.98 - 1.31 yd³
Wood grapple capacity
2,015 - 3,255 in²
LH 35 M Litronic
Operating weight
71,450 - 73,400 lb
Engine output
129 kW/173 HP
(SAE J1349)
Multi-tine grapple capacity
0.52 - 0.78 yd³
Shells for loose material capacity
1.70 - 2.62 yd³
Sorting grapple capacity
0.98 - 1.31 yd³
Wood grapple capacity
2,015 - 2,945 in²
LH 35 M Timber Litronic
Operating weight
64,600 lb
Engine output
140 kW/188 HP
(SAE J1349)
Wood grapple capacity
2,015 - 2,945 in²
LH 40 M Litronic
Operating weight
83,800 - 85,650 lb
Engine output
140 kW/188 HP
(SAE J1349)
System performance
226 kW
Multi-tine grapple capacity
0.52 - 1.44 yd³
Shells for loose material capacity
1.70 - 2.62 yd³
Sorting grapple capacity
0.98 - 1.31 yd³
Wood grapple capacity
2,015 - 2,945 in²
LH 50 M Litronic
Operating weight
93,800 - 97,000 lb
Engine output
140 kW/188 HP
(SAE J1349)
System performance
226 kW
Multi-tine grapple capacity
1.05 - 1.44 yd³
Shells for loose material capacity
1.70 - 2.62 yd³
Sorting grapple capacity
0.98 - 1.31 yd³
Wood grapple capacity
2,015 - 2,945 in²
LH 50 M Timber Litronic
Operating weight
82,100 lb
Engine output
150 kW/201 HP
(SAE J1349)
Wood grapple capacity
2,015 - 4,340 in²
LH 60 M Litronic
Operating weight
129,400 - 131,400 lb
Engine output
180 kW/241 HP
(SAE J1349)
System performance
288 kW
Multi-tine grapple capacity
1.05 - 1.44 yd³
Shells for loose material capacity
1.70 - 5.23 yd³
Wood grapple capacity
2,325 - 3,255 in²
LH 60 M Timber Litronic
Operating weight
99,900 lb
Engine output
200 kW/268 HP
(SAE J1349)
Wood grapple capacity
2,015 - 5,580 in²
LH 80 M Litronic
Operating weight
167,990 - 172,180 lb
Engine output
230 kW/308 HP
(SAE J1349)
System performance
385 kW
Multi-tine grapple capacity
1.83 - 2.22 yd³
Shells for loose material capacity
2.42 - 3.27 yd³
LH 80 M High Rise Litronic
Operating weight
196,100 - 204,050 lb
Engine output
230 kW/308 HP
(SAE J1349)
System performance
385 kW
Multi-tine grapple capacity
1.83 - 2.22 yd³
Shells for loose material capacity
3.92 - 5.88 yd³
Wood grapple capacity
2,945 - 3,875 in²
LH 120 M Litronic
Operating weight
314,800 - 343,050 lb
Engine output
400 kW/536 HP
(SAE J1349)
Multi-tine grapple capacity
2.22 - 3.92 yd³
Shells for loose material capacity
4.58 - 10.46 yd³
Wood grapple capacity
4,340 - 4,960 in²
LH 120 M High Rise Litronic
Operating weight
314,800 - 343,050 lb
Engine output
400 kW/536 HP
(SAE J1349)
Multi-tine grapple capacity
2.22 - 3.92 yd³
Shells for loose material capacity
4.58 - 10.46 yd³
Wood grapple capacity
4,340 - 4,960 in²

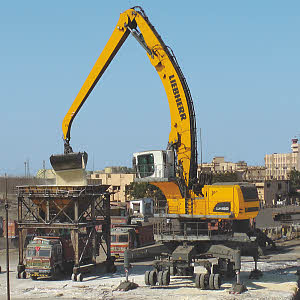

LH 120 M Litronic
