Piling- & Drilling Rigs LRB-Series

The Liebherr piling and drilling rigs are conceived for different piling jobs with vibrator and hydraulic hammer as well as drilling jobs with double rotary head, continuous flight auger and Kelly drilling equipment.

Rotary drilling rigs for all common drilling methods:

  • Ring vibrator / vibrator slim design
  • Piling / hydraulic hammer
  • Pre-drilling
  • Kelly drilling
  • Continuous flight auger drilling (CFA)
  • Double rotary drilling
  • Soil mixing
  • Full displacement auger drilling
  • Jet grouting

Operating weight
101,400 lbs
Max. effective lenght
50.9 ft.
Max. torque
264,550 lbf-ft
Max. push / pull force
44,100 lbs
Engine output
450 kW
Operating weight
147.7100 lb
Max. leader length
78.7 ft.
Max. torque
48,500 lbf-ft
Max. push / pull force
66,100 lbs
Engine output
450 kW
Operating weight
176,370 lbs
Max. leader length
98 ft.
Max. torque
66,138 lbf-ft
Max. push / pull force
99,200 lbs
Engine output
670 kW
Operating weight
231,485 lbs
Max. leader length
104 ft
Max. torque
332,000 lbf-ft
Max. push / pull force
202,000 lbf
Engine output
600/750 kW

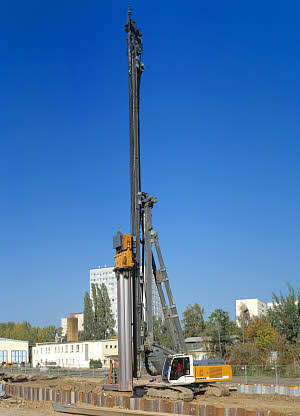

LRB 155
