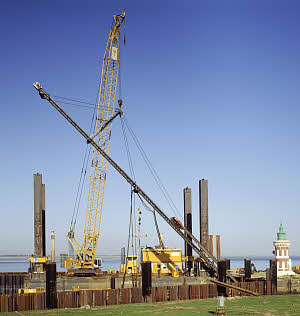

Fixed and swinging leaders LRH series

For special piling tasks with recommended highs that require long outreach Liebherr offers a wide range of basic machines with fixed or swinging leader. Depending on the requirements the LRH is based on basic machines from the approved Liebherr hydraulic crawler crane series (HS) the hydraulic lift crane series (LR) or the rotary drilling rig series (LB) are used. These high-end construction machines combined with strong leaders convince through high efficiency and flexibility.

Max. length with hanging leader
60.7 ft.
Max. capacity with hanging leader
22,046 lbs
Max. push / pull force
22,046 / 17,637 lbs
Basic machine
LB 20
Max. length with swinging leader
131 ft.
Max. length with hanging leader
108 ft.
Max. capacity with hanging leader
44,093 lbs
Max. push / pull force
88,185 lbs
Basic machine
HS 855 HD
Max. length with swinging leader
157 ft.
Max. length with hanging leader
138 ft.
Max. capacity with hanging leader
115,000 lbs
Max. push / pull force
132,277 lbs
Basic machine
HS 885 HD
Max. length with swinging leader
197 ft.
Max. length with hanging leader
164 ft.
Max. capacity with hanging leader
143,300 lbs
Max. push / pull force
176,370 lbs
Basic machine
HS 895 HD
