Ship to Shore Container Cranes (STS)

Liebherr's Ship to Shore Container Cranes are always configured to suit the customer's individual requirements. The range of functions comprises the following technical properties:

  • High Hoist and Trolley speeds resulting in short cycle time (70/175 m/min Hoist and up to 240 m/min Trolley)
  • Simultaneous Hoisting, Trolley Travelling and Gantry Travel as standard
  • Twinlift Operation up to 65 Tonnes. (2 x 32.5 Tonnes)
  • Tandem Lift Operations up to 80 Tonnes. (2 x 40 Tonne Containers)
  • The latest Speed Control Systems (Liebherr AC and DC Drive System)
  • Sophisticated Crane Management System providing extensive operational and crane performance data. (VISUSCAN)
  • Proven Mechanical Anti-Sway System
  • High reliability/availability figures with MTBF values of less than 0.5% per annum
  • Fault Monitoring / Maintenance Support direct from the Liebherr factory via RF Link / LAN and Modem
  • Stable, rigid, sway resistant, high quality steel structure design

Click on an image to show it full size

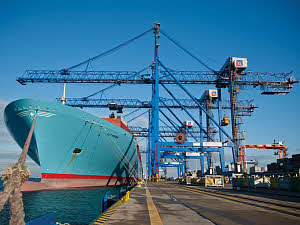

Ship to Shore Container Crane
